Napa Valley, California

Napa County, California

Job Site Challenges

Materials: Needed heavy, large pipe assembly and excavation
Remote Location
Limited road access to pad site
Engineering specifications for seismic activity

Additional Solutions

Large diameter pipe
Pipe inlet through bottom of tank

The Solution

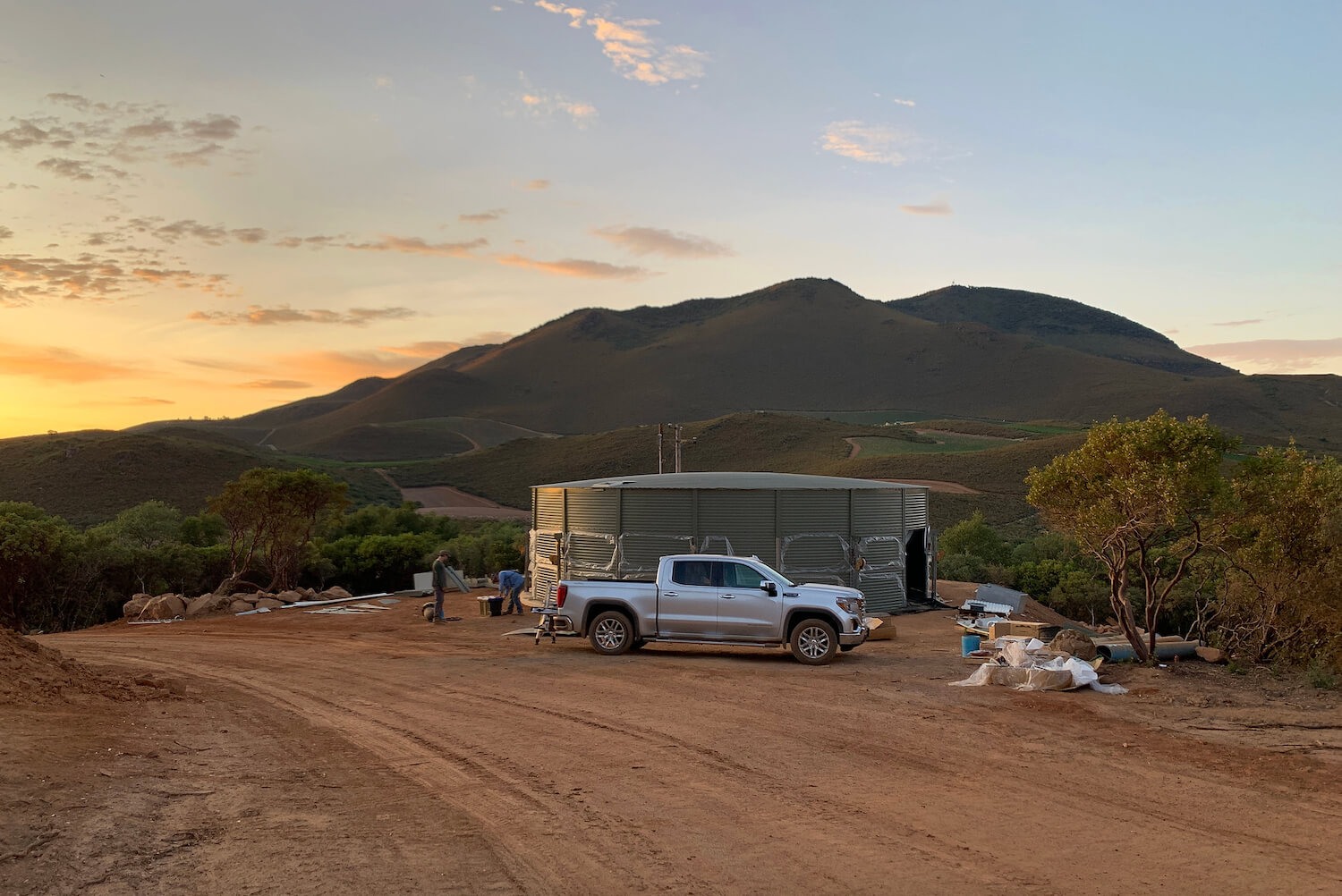

This project out in Napa Valley, CA, involved one 100,000-gallon irrigation water tank for a vineyard. This is the vineyard’s second tank with the other tank being solely used for frost prevention. Commercial tanks of this size along with regional seismic activity require that the tank be engineered to meet local county, state, and federal codes. Taller tanks are constructed with thicker metal, beefier trusses and side panels, anchored to concrete, and are not filled to the top with water due to earthquakes and the sloshing of the water. Each commercial tank is engineered specifically for each application and geographic location. Since Blue Brute 12” PVC pipe was used as an inlet from the well on the property, a bottom penetration into the tank was designed for aesthetic and mechanical purposes. Using heavy duty jacks, the tank is constructed from the top down and bolted to the concrete curb.

Key Technical Elements

Storage Capacity: 100,000 GALLONS
Built for IRRIGATION & FROST PREVENTION USE
